Endo-Upex™ (Disposable Electrosurgical Snare)
“安朵優倍斯” 拋棄式電刀用切除環

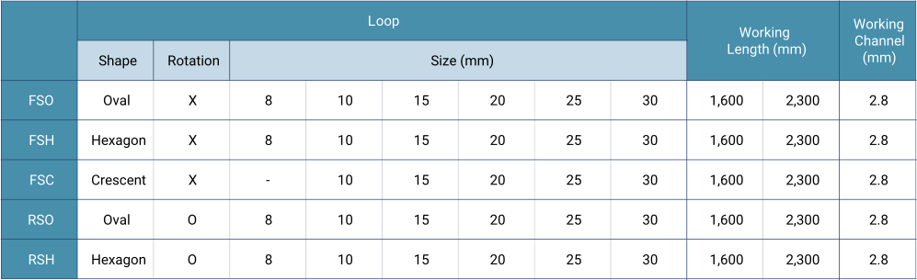

多種規格 (Various specs)
各種規格(工作長度/套環尺寸/形狀/硬度)提供醫生選擇合適的器械。 此外,器械工作長度以手柄顏色分為紫色或灰色。 (灰色表示上消化道,紫色表示下消化道)
Various specifications(working length/loop size/shape/stiffness) allow physicians to choose right device. In addition, the handle is colored in either purple or gray distinguished by the working length. (White for upper GI/Purple for lower GI)

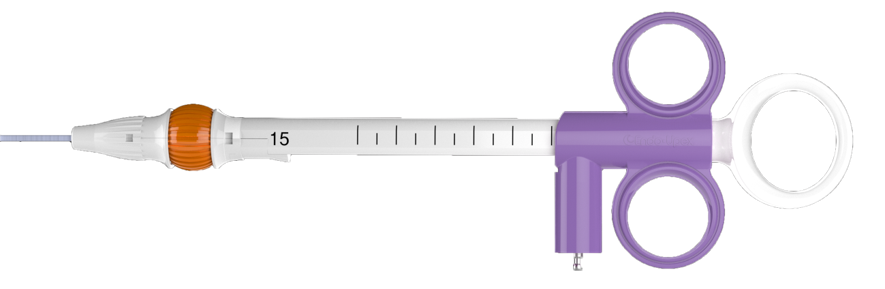

人性化設計 (User-friendly Design)
A.可以透過器械把手上的標記來測量移動距離(間隔5mm)
A. Can measure the moving distance by the marking on the body (5mm interval)
B.可透過Orange-Ball左右雙向旋轉切除環。

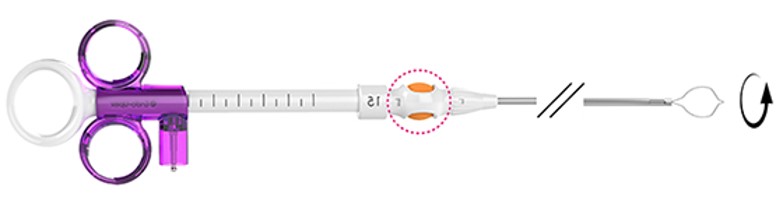

B. Can rotate the loop immediately in both directions with Orange-Ball.
C.提供各種規格,包括工作長度,切除環形狀,大小和剛度。
C. Provide various specifications varied in working length, snare shape, size, and stiffness.
----手柄的顏色因工作長度而異。 (灰色表示上消化道,紫色表示下消化道)
----The handle color is differed by the working length. (White for upper GI/Purple for lower GI)
D.齒輪結構→減小手柄的操作距離(僅25mm型號)
D. Gear attached → reduce the operating distance of handle (25mm model only)
可旋轉設計,具備優異的操作反應 (Rotatable type with excellent torque-ability)
獨特的設計可進行精準的地旋轉操作(1:1反應)

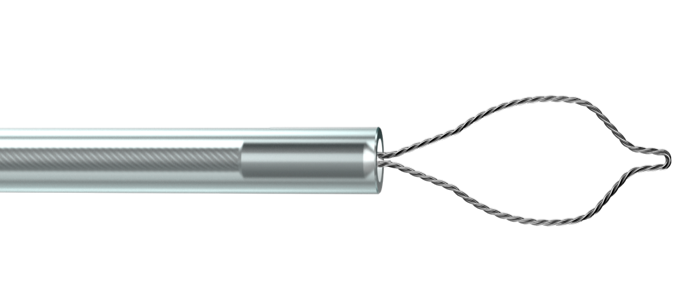

Specially designed wire achieves excellent torque-transmission (1:1 reaction)
→可精確地左右雙向旋轉。
→ The wire enables the loop to rotate in both directions precisely.
